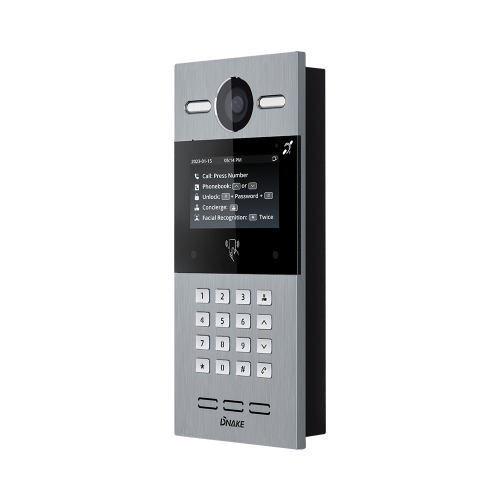

DNAKE S615 IP65 Intercom Door Station (Surface Mount)

Click Image for Gallery

Description
Specification

DNAKE S615 provides an integrated security solution. It enables users to open the door with facial recognition, IC & ID card and PIN Code. It also makes it easy to video call with an indoor monitor and mobile app, for a convenient and secure home life.

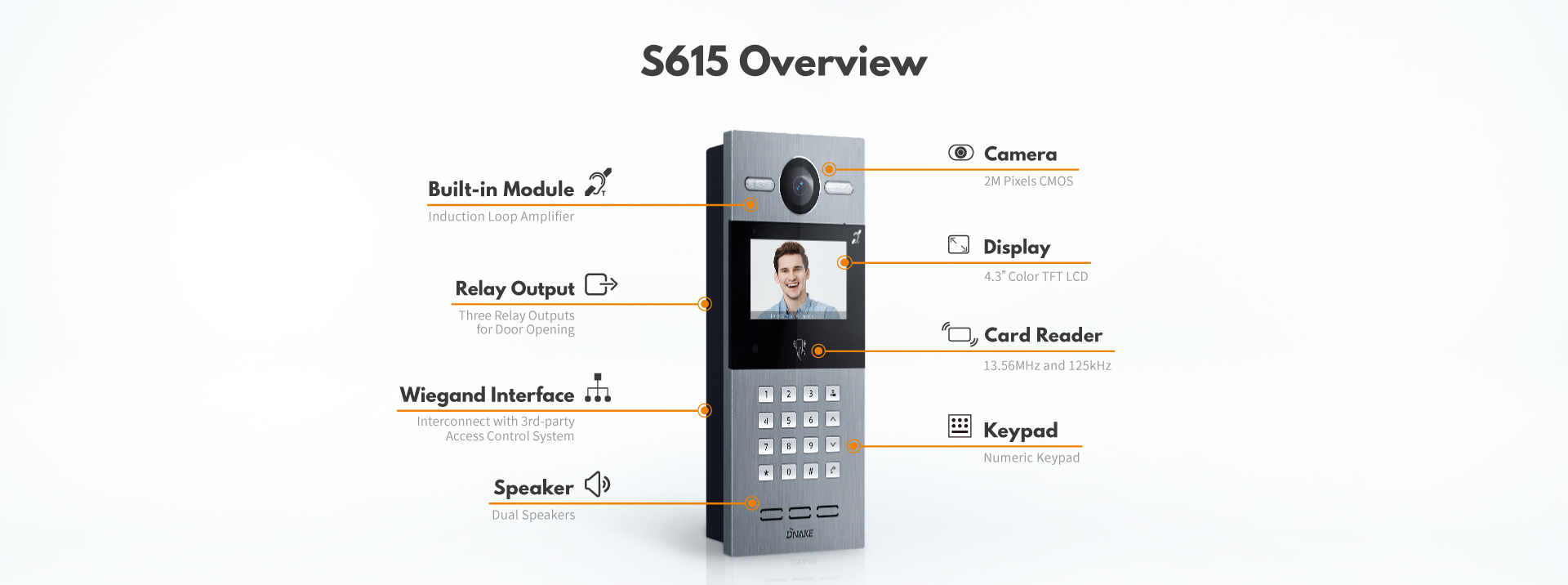

Features

Induction loop for hearing-impaired
Braille dot for visually impaired
3 output relays for door locks
Tamper alarm
Facial Recognition (No distortion)
Support Face, IC (13.56MHz) & ID (125kHz) card, PIN code
2MP camera with WDR mode

Package Contents

DNAKE S615 (Power adapter not included)
Surface Mounting Box
Screwing Kit
Quick Start Guide

Datasheet

Datasheet

Details
Access Control Equipment	IC (13.56MHz) & ID (125kHz) card, PIN code
Button Type	Mechanical
Indications	Indicator lights = 3
Materials / Finish	Aluminium
Mounting Type	Surface
Reset Button	Yes
System	Android
Vandal Resistance	IK08
Dimensions
Dimensions (mm)	188 x 88 x 34
Drive
Rated Load	16 W
Electrical Data
Audio	Audio Codec: G.711 Echo Cancellation DTMF: RFC2833 Microphone: Built-in microphone Speaker: 8Ω / 1W
Power Supply	PoE (802.3af) or DC 12V/2A
Stand-by Power	8 W
Angle of view (H x V - °)	75º x 131º
Camera Resolution	2MB, CMOS, WDR
On-Screen Display (OSD)	Display: 4.3-inch TFT LCD Resolution: 480 x 272
Video Codec	H.264
Video Resolution	up to 1920 x 1080 ~ 25fps
Lighting Specifications
Lighting Type	LED White Light Compensation
Memory
Memory	RAM: 1 GB ROM: 8 GB
Network
Ethernet Port	1 x RJ45 10/100 Mbps adaptive
Protocols	ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Optics and Sensors
Angle of View	120º
IR LED	Sensor Support
Performance Data
Working Humidity	10% to 90% (non-condensing)
Working Temperature	-40ºC ~ +55ºC
Safety Relay Data
Input	Relay In = 4
Technical
IP Rating	IP65
Relay Outputs	3
Wiegand Input	Support
