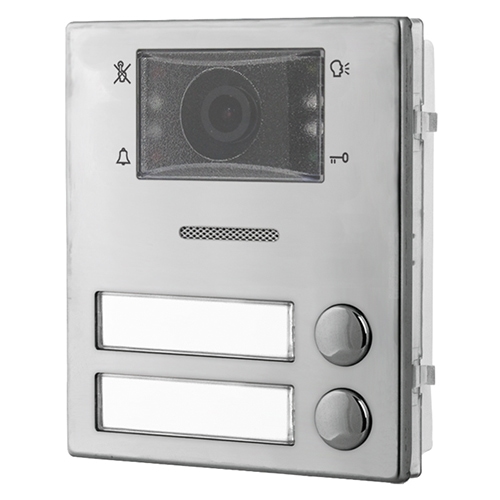

The speaker / camera modules are available with either 1 or 2 buttons with blue backlit name plate windows.
The modules are equipped with a CMOS colour camera with an auto iris lens, complete with 4 bright white illumination LED’s. The camera also has a 10° vertical and horizontal adjustment and contains a heating element to prevent the lexan window from misting up. The modules also have reassurance tones and 4 call progress LED’s to advise the user when the system is busy, a call is in progress, when to speak and when the door is open.
All modules contain a speaker and fly lead with microphone which easily fits into a 4000 series frame. Modules attach to the housing frames using a simple but strong clip in system
Speech levels may be adjusted using separate adjustment for both the speaker and microphone.
A wide angle camera is also available by adding (/W) to the product code.
Features
- CMOS colour camera with auto iris lens & hite light LED illumination
- 10° tilt angle adjustment (horizontal and vertical)
- Wide angle camera option available with a 170° viewing angle (suffix /W)
- Internal anti-mist resistor
- Contains speaker and fly lead microphone (microphone easily fits within a 4000 series frame)
- Speech volume adjustment (both directions)
- Blue backlit name plate windows (1 and 2 button versions)
- Built-in proximity reader (for 4333X only) allowing up to 50 cards/fobs max.
Technical
- Power: 4833 (20Vdc)
- Power: 4284 (12Vdc)
- Power: 4333 and 4333X (32Vdc supplied by 2 wire BUS)
- Camera: CMOS colour camera with auto iris lens
- Call progress indication: Yes, 4x LED’s (call, busy, speak and door open)
- LED’s: Yes, 4 white light illumination LED’s and name plate back light (blue)
- Call reassurance tones: Yes
- Button combinations: 0, 1 and 2 button speaker/camera modules
- Relay output: C, NO & NC
