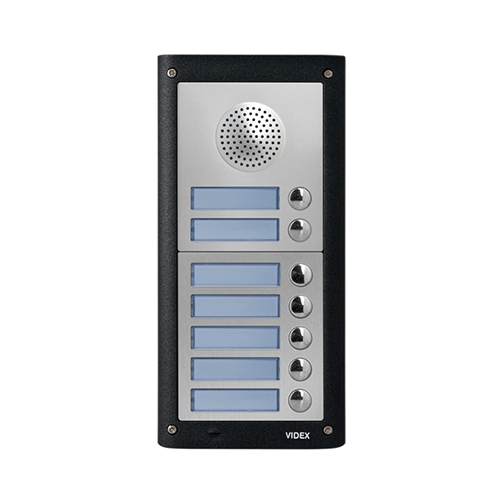

Audio entry kits based on the 4000 Series modular design incorporating two way speech, electronic call tone and lock release facility. The door station is available surface or flush mounting with up to 12 call buttons each with a back lit name plate.

The standard finish is a stainless steel fascia with a gun metal grey surround. The telephone is wall mount with a lock release button and a three position call tone volume control. Up to 2 additional handsets can be connected in each apartment.

Features

• Audio kit based on the 4000 Series
• 1-12 call buttons available with illuminated name plate
• Surface or flush mount door panels
• Smart line handset with lock button and 3 position call tone volume control
• Connect up to 3 handsets per call button

Kit Contains

• 1x Intercom
• 1x Audiophone
• 1x PSU

Technical

• Number of entrances – 1
• No. Of cores to telephone – 4
• Recommended cable type – CW1308
• Maximum No. Of telephones per call button – 3
• Lock output – Dry contact (C NO)
• Telephone model – 3011 (call tone)
• PSU model – 321 (13Vac)
• Amplifier module – 4836
