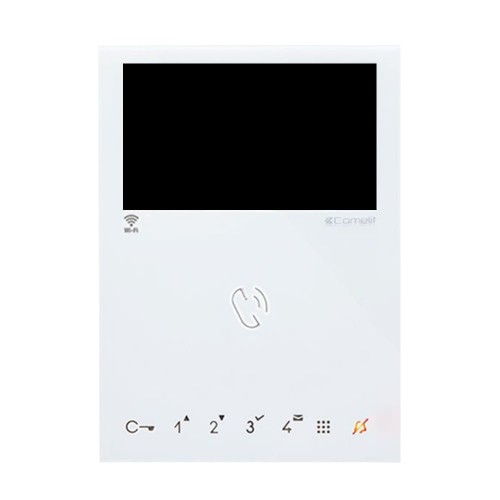

Wall-mounted hands-free monitor with full-duplex audio and 4.3" 16:9 colour screen. It is equipped with a Wi-Fi port to allows calls forwarding to mobile devices.
Alexa Support
Do you have Amazon Alexa?You won’t need anything else to control your system with your voice, you can integrate your Amazon Alexa into your Comelit door entry monitor system in a few simple steps, without the help of a professional.
What you will need
- Have a configured and working Alexa device
- Have a Mini Wi-Fi door entry monitor (6741W) with firmware version >= 1.4.0 (the door entry monitor automatically updates to the latest available firmware version without requiring user action)
- Have installed the latest version of the Comelit App on your smartphone (4.1.11)
- Have installed the Amazon Alexa app on your smartphone
Functions of the Alexa Support
- Get notified of someone ringing the bell
- If the face recognition feature is active and the face of the guest is registered you can receive a notification of who has rang the bell, "Emma has arrived"
- Open doors or gates using your voice
- If you have assigned actuators (e.g "porch lamp") to a button on the monitor, you can activate them with your voice, "Alexa, turn on porch lamp"
How to set up Alexa functionality
- Download/Update Comelit App to the latest available version (4.1.11) and pair your Mini Wi-Fi to the user you are registered with in the Comelit App
- Download the Amazon Alexa app and enable the Comelit Home capabilities
- Configure the interaction events
Features
- Screen Size: 4.3" (480 x 272)
- Number of Buttons: 4
- Lock-release
- Answer
- Silent (Privacy)
- Menu
- Messages
- Door open
Compatibility
- Audio/video Simplebus 2 with power supply art. 4888C
- Audio/video Simplebus 2 with power supply art. 1210/1210A
- Simplebus 2 audio/video kit with power supply art. 1209
Manuals and Datasheets
Comelit 6741W Mini Hands-free Wi-Fi Monitor User Manual
Comelit 6741W Mini Hands-free Wi-Fi Monitor Technical Manual
| Dimensions | |
| Dimensions (L x W x H) | 115 x 160 x 22 mm |
| Electrical Data | |
| Absorption (mA) | Standby: 3 - 3.5 mA During call: 150 - 180mA |
| Power Supply | 22÷34 VDC (Bus) |
| Performance Data | |
| Operating Humidity | 25% to 75% |
| Operating Temperature | 5°C to 40°C |
| Technical | |
| Protection Level (IP) | IP30 |
