The Ajax Hub 2 Plus Kit 3 takes home security above and beyond with this modern, smart wireless alarm system. Simple to install with super fast set-up, this system is completely wireless with no cabling is required.
With Ajax your home is always with you, manage your smart security system anywhere and anytime via the Ajax app.
Stay up to date via instant push notification alerts, SMS or phone calls. All events are stored in the full event log available in the mobile app for easy access.
Features
High Ratings, High Satisfaction
Ajax provide the most prestigious wireless security systems in Europe, ensuring your property is protected with ease.
Quick and Easy Installation
You can fit an Ajax alarm system in approx 30 minutes with no prior knowledge or experience, it really is that easy! SmartBrackets make mounting a breeze.
Proper Protection
Ajax takes security seriously, and so your system is protected from forgery due to the required authentication.
Smart Security
Includes communication channel encryption, jamming detection and a tampering alarm. Protected against viruses at software level.
Intelligent Home Automation
Quickly and easily set-up scenarios, schedules and reactions to adapt your system to your lifestyle. For example, schedule night mode to have your system arm automatically at bedtime.
Hub Comparison
Ethernet
4G Dual Sim
Wi-Fi
Visual alarm verification
Video streaming
Ethernet
2G Dual Sim
Visual alarm verification
Video streaming
Ethernet
3G/2G Dual Sim
Wi-Fi
Video streaming
Ethernet
2G Single Sim
Video streaming
Kit Overview
Hub 2 Plus (4 communication paths: Ethernet, Wi-Fi & 4G Dual Sim)
The Hub is the control panel of your smart security system, and constantly monitors all of your Ajax devices. When triggered, the Hub will immediately send an alarm signal to both the Central Monitoring Station and the owner.
The intelligent Hub 2 Plus is fourth-generation and supports visual alarm verification with photos in just 9 seconds, even when it uses SIM cards for communication. The four independent communication channels ensure data delivery.
Furthermore, the Hub 2 Plus can manage up to 200 MotionCam detectors and provide radio coverage of up to 35km2 when used with 5 ReX range extenders, making it ideal for large and complicated properties.
Notifies you of mains power outages and operates on battery backup for up to 15 hours! Detector functionality is checked at least every 12 seconds to ensure optimal performance.
Jeweller radio technology ensures swift response times, and during jamming will switch the entire system to clear frequencies.
Motion Cam
No movement goes unnoticed! This wireless motion detector notifies you the moment it notices an intrusion, no matter how fast or slow they moving through the property.
The improved MotionCam has a built-in camera and is designed with speed, clarity and privacy in mind. Immediately receive an animated series of images from the detector upon being triggered, alerting you to dangerous situations or simple false alarms.
Someone forgot to disarm the alarm upon returning home? No problem! With the MotionCam you get extra peace of mind, plus there is no need to worry about false alarm fines.
Unlike CCTV cameras, the MotionCam is only captures images if it detects movement while the alarm is armed. This ensures that privacy and protection work together in harmony.
Door Protect
Protect your property from break-ins through doors and windows for total peace of mind. This wireless magnetic opening detector instantly detects and notifies of intrusions.
Keypad
Convenient control over your system in just one click, this wireless touch control keypad comes with an included wall-mount. Indicates security modes and can discreetly activate a silent alarm if required.
Street Siren
If there is a break-in, it will not go unnoticed! This wireless outdoor siren uses sound and light to notify of nearby danger. Customisable alarm length and sound level to match the installation environment.
Home Siren
Let your intruders know their presence is noted! This wireless indoor siren produces a loud alarm during detector activation that is sure to make invaders think twice.

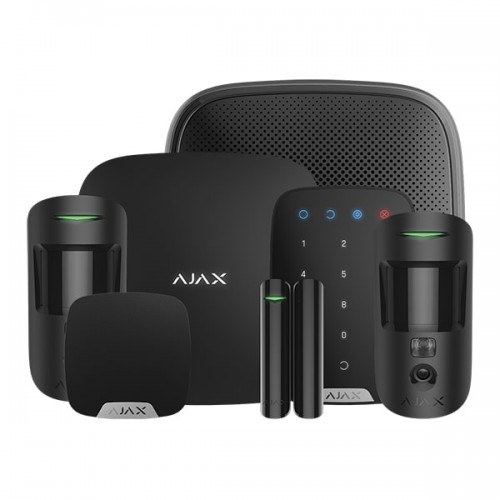

Kit Contents
- 1 x Hub 2 Plus (4 communication paths: Ethernet, Wi-Fi & 4G Dual Sim)
- 2 x MotionCam
- 1 x DoorProtect
- 1 x Keypad
- 1 x StreetSiren
- 1 x HomeSiren
Manuals
| Details | |
| Product Type | Kit |
| Anti Sabotage | Forgery prevention Notifications about jamming Tamper to detect back lid opening and un-mounting from SmartBracket |
| Brandable StreetSiren Faceplate | No |
| Classification | Security system control panel with four in-built channels for external communication and support of detectors with photo cameras |
| Communication Methods | Ethernet, Wi-Fi & 4G Dual Sim |
| Device Colour | Black |
| MotionCam Detectors Support | Yes |
| Operating System | OS Malevich |
| Video Surveillance | 100 cameras and DVRs |
| Visual Alarm Verification | Yes |
| Dimensions | |
| Dimensions | Hub: 163 × 163 × 36 mm |
| Electrical Data | |
| Battery Type | Built-in back-up battery, Li-Ion 3 А·h Ensures up to 15 hours of operation when using SIM card only |
| Power Supply | 110-240 V with pre-installed battery 6 V with alternative 6V PSU power supply Energy consumption from the 110-240 V grid — 10 W |
| Performance Data | |
| Operating Temperature | From –10°C to +40°C |
| Technical | |
| Alarm Signal | Delivery time: 0.15 sec Notification types: SMS, call, push-notification |
| Communication Channels | 2 SIM cards 2G (GSM900/DCS1800 (B3/B8)) 3G (WCDMA 850/900/2100 (B1/B5/B8)) LTE (FDD B1/B3/B5/B7/B8/B20) Wi-Fi (802.11 b/g/n) Ethernet |
| Communication with Central Monitoring Station | CMS connectivity: Contact ID, SIA Photo verification integrated in Manitou, SBN, WBB, V1/F1, Kronos, Sentinel and Horus |
| Connected Devices | 200 |
| Connected ReX | 5 |
| Groups | 25 |
| Jeweller Radio Technology | Communication range with detectors — up to 2,000 m in an open space Two-way communication between devices Operating frequencies — 868,0−868,6 MHz Self-adjusting RF output power — up to 25 mW Block encryption based on AES algorithm Detector polling period — 12−300 s Frequency hopping |
| Rooms | 50 |
| Scenarios | 64 |
| Switching Between 2G, 3G, LTE | Instant |
| Switching Between SIM Cards | 4 Minutes |
| Users | 200 |
| Wings Radio Technology | Transmission of visual confirmations Delivery verification of packages |
Ajax Hub 2 Plus Kit 3 Cam House With Keypad Black
- Brand: Ajax
- Product Code: 23331.69.BL1
- Availability: In Stock
