A Model For Every Need

The SUB BT kit is an underground gate automation kit that comes in a single or pair variant, it has motors that operate at 24v with an opening angle of 120°, an opening time of 13 seconds. The SUB BT motors in this kit are irreversible operators using a lever for manual release and do not support slowdown on the opening and closing of the gates.

D-Track

Total safety at all times! The control unit adapts to the required force level to each specific gate position and adjusts automatically to changing climatic conditions.

THALIA P Control Unit

The Thalia P control unit guarantees extremely quick installation and unbeatable simplicity! The scenario-based programming guides the operator through all the installation steps on the LCD; the terminal boards have standard colour coding to allow instant recognition of functions and maximum ease of wiring.

External Unlocking System

Now the SUB operator can be unlocked from the outside too! On the BT version the gate is operated manually with the SCC accessory (the same system used for ELI250N), allowing simpler, immediate operation.

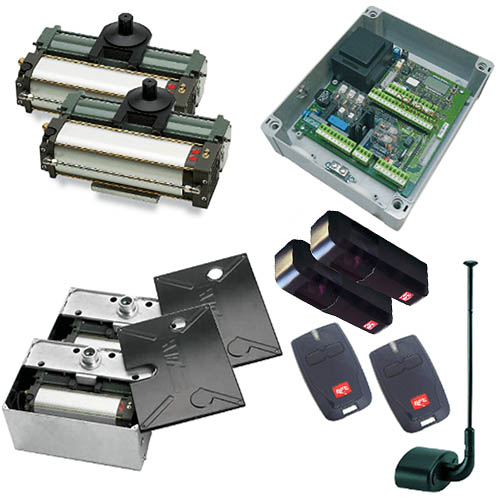

Kit Contents

• 2 x SUB Hydraulic Motors
• 2 x Heavy Duty Foundation Boxes
• 1 x Control Panel & Receiver
• 2 x MITTO B RCB 02 Two Button Transmitters
• 1 x Pair of Compacta Safety Photocells
• 1 x Radio Antenna

Plus:

Virtual encoder: The brand new BFT obstacle detection and reaction system ensures the utmost anti-crushing safety. Thanks to the powerful microprocessor used in the control unit the speed of movement and the power draw of the motors are continually monitored and analysed ensuring total safety for people and property

Adjustable built-in mechanical stops: "Greatest ease and speed of installation thanks to the built-in mechanical stops that allow installation with no catches on the ground, ensuring the installation site fully respects the architecture.
The possibility of adjusting them with two practical, handy screws above the operator ensures an angle of aperture from 60 to 120°."

IP protection rating: TThe aluminium structure with high resistance treatment and the form of the operator make them ideal for working in very harsh conditions, guaranteeing maximum reliability and performance at all times.

Note: Please feel free to contact us for more information or for a possible faster delivery time.
