Features

• Guarantees fast manoeuvres -  90° opening in about 19* seconds
• Reliable - The magnetic encoder keeps the set values stable over time and guarantees precise obstacle detection.
• Easy to Install - Electrical connections are easily accessible from above, thanks to the dedicated access.

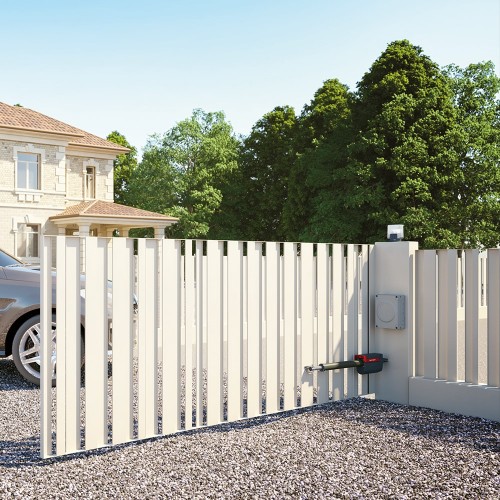

• Versatile - The motor can also be installed in the bottom part of the gate leaf, at a distance of at least 110 mm from the ground.
• Practical and safe - Easy convenient key release located in the top part of the motor, allowing the gate leaves to be opened and closed manually in the event of a blackout.

Includes

• 2 x TTN6024RHS - Reversible electromechanical gear motors, 24 Vdc with magnetic encoder
• 2 x ON2E - Transmitters 433.92 MHz, 2 channels
• 1 x MC824HR - One control unit for two motors, with 24 Vdc encoder
• 2 x EPMB - One couple of outdoor photocells designed for connection via Nice BlueBUS
• 1 x OXI - One receiver up to 4 channels with connector, without built-in transmitter

Compatibility

• TITAN6024RHS are compatible with the Moonclever MC824HR control unit
• simple programming with a single key
• self-learning of opening and closing limit positions
• automatic fault diagnostics
• programming of pause time
• pedestrian pass door;
• deceleration during opening and closing
• double technology obstacle detection
• operation in event of power failure with optional rechargeable batteries (PS324)
• provision for connecting the latest generation sensitive edges
• MC824HR / OXI (Control Unit)
• ERA INTI (Transmitter)
• ERA ONE (Transmitter)
• ERA FLOR (Transmitter)
• NICEWAY (Transmitter)
• EPSB (Photocells)
• EPMB (Photocells)
• EPLB (Photocells)
• F210B (Photocells)
• ELDC (Flashing Light)
• WLT (Flashing Light)

*Considering standard installation, excluding acceleration and deceleration.

Manuals and Datasheets

Nice Moonclever MC824H / MCA1 Manual (from 09/2018 onwards)
