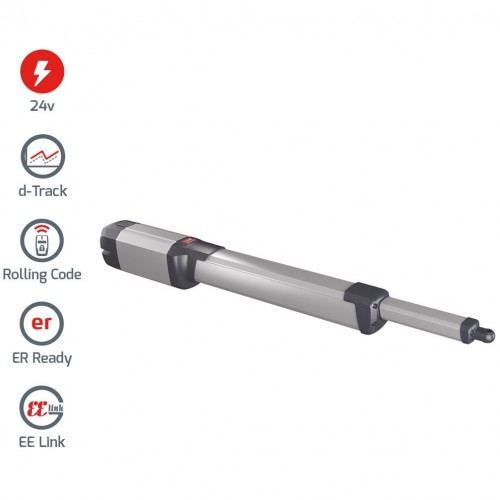

BFT irreversible electro-mechanical 24V kit for double swing gates up to 500kg in weight and up to 4m in length (per leaf). Integrated mechanical stops.

These motors are ideal for small properties and apartment complexes. The strong and durable worm-drive enables a powerful torque enhancement rate. Designed to be installed quickly and easily with an array of important features such as those below.

Features

Key Features

Covered Worm Screw

These telescopic motors come with a covered worm screw, which is included with all operators from the KUSTOS BT A range. The covered worm screw provides an exceptional safeguard against ingress from water, dust, dirt, even people. This shield prevents access to any moving parts and helps prevent accidents and injury.

Magnetic Limit Switch And Integrated Stops

The magnetic limit switch technology guarantees optimum movement accuracy and simple adjustability. They allow perfect installation without the need for floor stops thanks to inbuilt adjustable mechanical stops.

Magnetic Pin

An innovative feature of BFT operators that allows for faster installation, making each step simpler and always guaranteeing that the operator's rear locking is accurate.

Other Features

• Ideal for intensive use
• Protected worm-drive box
• Completes an opening cycle in just 17 seconds
• Magnetic limiting switches
• Obstacle detection
• IP44 ingress protection level
• Adaptable and hard-wearing
• Easy to install

Technologies

24V

A technology that is accurate, safe, and dependable. With a precise adjustment of the slowdown in closing and opening, BFT 24V technology provides optimal performance. Another important consideration is safety, which requires the rapid stopping and reversal of movement in the face of obstructions. The technology's effectiveness ensures the product's dependability.

D-Track

The amount of thrust needed to function safely. A sophisticated torque management system based on BFT control units' microprocessor technology. It adjusts the degree of thrust necessary to accomplish the cycle by gathering data from numerous indications. D-Track also makes it easier for the installer to acquire the necessary certifications required by law.

Rolling Code

For the safe communication of data. BFT transmitters utilize a rolling code method to manage commands in a totally secure manner and avoid any external interference. Each time a transmitter key is hit, a distinct code is delivered to the control unit, which is only recognised by the receiver and approved once. The created algorithm then prohibits the code from being replicated.

ER Ready

This new remote control coding system allows for direct cloning. This method, which is based on microprocessor technology, allows any MITTO remote control to be cloned by a MITTO REPLAY remote control. This works by the first remote control "teaching" the second remote the proper code, which is then recognised by the receiver upon first-time use.

EE Link

To programme quickly and safely. EELINK is a BFT system that allows data to be transferred from automated systems to PCs and vice versa through the use of portable programmers (Unipro, Uniradio, and Proxima). As a result, the databases of information held in the installed systems, EEdbase or U-base, are continually updated.

Kit Contents

• 2 x Kustos operators
• 1 x Control panel & receiver
• 2 x Radio transmitters
• 1 x Pair of safety photocells
• 1 x Radio antenna

Manual

• View Manual
