Nice Walkykit 2024
- For swing gates with leaves up to 1.8m.
- Suited for gates made of wood or PVC.
- Ultra compact design, recommended for small posts.
- Built in mechanical stop on closure, guranteeing safety.
- 7 seconds to open or close
- Optional PS424 batteries housed inside the motor ensures operation during power failures
Built in control unit
- Simple to program
- Opening and closing positions self learning.
- Automatically diagnoses faults
- Decelerates when opening and closing
This kit includes:
- 1 x WL1024C Motor with built in control panel
- 1 x WL1024 Motor without control panel
- 1 x ON2E 2 Channel Remote Control
- 1 x EPMB Pair of BlueBus Photocells
- 1 x MOSE Keyswitch

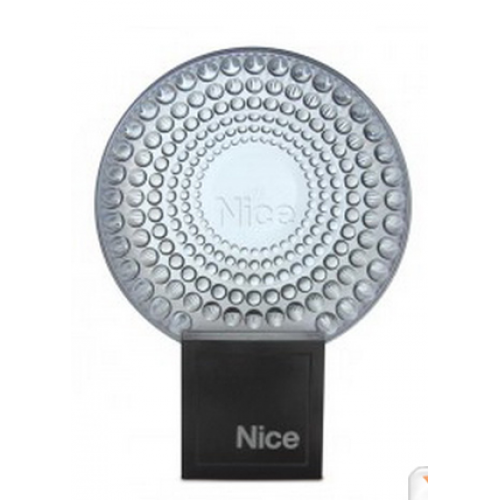

- 1 x WLT Flashing Light
- 1 x TS Signboard
Electrical Data | |
Absorption (A) | 0.8 A (WL1024C) 2 A (WL1024) |
Motor Voltage | 24v |
Power (W) | 120 W (WL1024C) 30 W (WL1024) |
Gate Specifications | |
Automation Type | Articulated |
Kit Type | Double |
Max. Gate Leaf Length (M) | 1.8 |
Max. Gate Weight (KG) | 180 |
Performance Data | |
Speed (RPM) | 1.5 - 2.2 |
Torque (Nm) | 120 |
Work Cycle (cycles/hour) | 50 |
Working Temp. (°C Min/Max) | -20° ÷ +50° |
Technical | |
Protection Level (IP) | IP44 |
