Cantilever gate kit for clear gate openings up to 8m and up to 600kg in weight. Supplied with 1 x 6m and 1 x 3m galvanised track.

Cantilever gate systems are ideal for use in commercial, public sector and residential environments.

Features

• No need to install a track in the ground

• Very little groundwork is necessary
• Lower labour costs
• Lower upkeep
• Ideal for frequent use
• Elegant in appearance
• Capable of carrying cantilevered gates up to 8m clear opening / 600kg max gate weight

Kit Contents

• 1 x 6m GIPI 5 RGZ6 Galvanised Track
• 1 x 3m GIPI 5 RGZ3 Galvanised Track

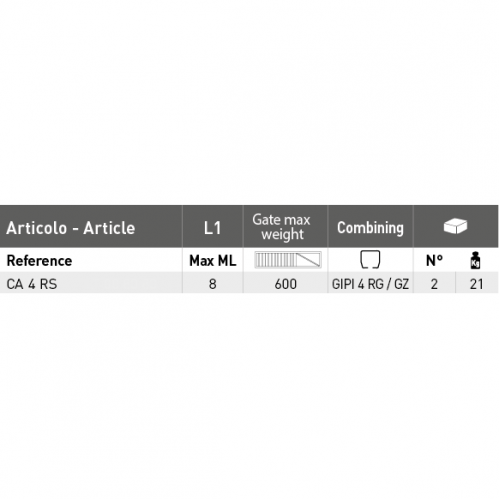

• 2 x CA4RS Medium 8-wheeled cantilever carriages.
• S235 structural grade steel body with C45 case-hardened carbon steel bearings.

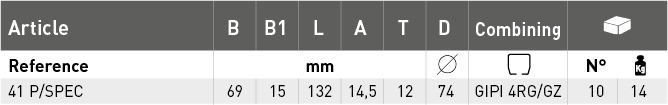

• 2 x 41P/S Medium support wheels with cover
• 2 x 50P Meeting Points
• S235 structural grade steel, galvanised finish
