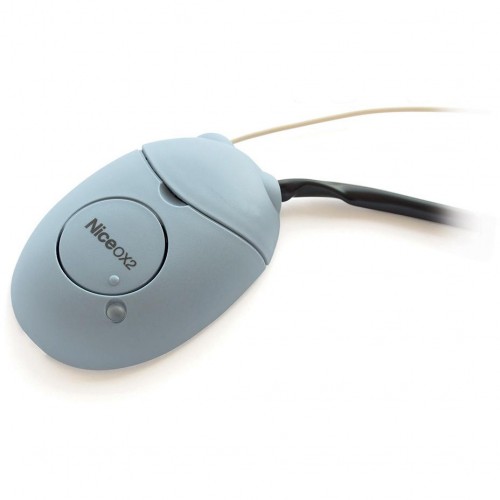

The Nice OX2 is a universal, pre-wired radio receiver without a built-in transmitter. The OX2 model can be used with any type of control unit as it operates using 2 voltage-free contact relays.
This receiver is part of the NiceOne series. The radio receivers in this series are designed for use in automation systems such as gates, garage doors and road barriers. The receivers are to be connected to the control units fitted on these systems.
Features
- Universal, pre-wired receiver with 6-core cable for connecting to your control unit
- 2-Channels, without built-in transmitter
- Can memorise up to 1024 remote controls
- Works on 433.92 MHz frequency
- Part of the Nice Opera system
- Communicates using Nice O-Code radio encoding system
- Compatible with FloR, TTS, Smilo and Flo encoding systems*
*some exclusive NiceOpera system functions cannot be used with these encoding systems
How Does It Work?
- Can be used with any type of control unit
- Operates using 2 voltage-free contact relays
- Connect the 6-core cable to your control unit as per product manual
- Program your remote control(s)
How to Program Your Remote(s)
Instructions and Manuals
Programming Guide
Full Programming of the Nice OX2 – OXI Radio Receiver
| Details | |
| Dimensions (H x W x L) | 86 × 58 × 22 mm |
| Dimensions | |
| Weight (g) | 55 grams |
| Electrical Data | |
| Absorption (A) | On standby: 10 mA at 24 Vac With 2 relays active: 80 mA at 24 Vac |
| Power Supply (Vdc) | Without electric jumper = 24 V standard. Limits from 18 to 28 V direct or alternating. With electric jumper = 12 V standard. Limits from 10 to 18 V direct or alternating. |
| Performance Data | |
| Working Temp. (°C Min/Max) | –20°C to +55°C |
| Radio | |
| Coding Type | Rolling Code |
| Frequency (MHz) | 433.92 MHz |
| Technical | |
| Number of Channels | 2 |
| Number of Relays | 2 |
| Protection Level (IP) | 30 |
| Relay Outputs | NO |
| Sensitivity (μV) | >0.5 for signals with successful outcomes |
| User Capacity | 1024 |
Nice OX2 Universal Standalone Radio Receiver
- Brand: Nice Automation
- Product Code: OX2
- Availability: In Stock
