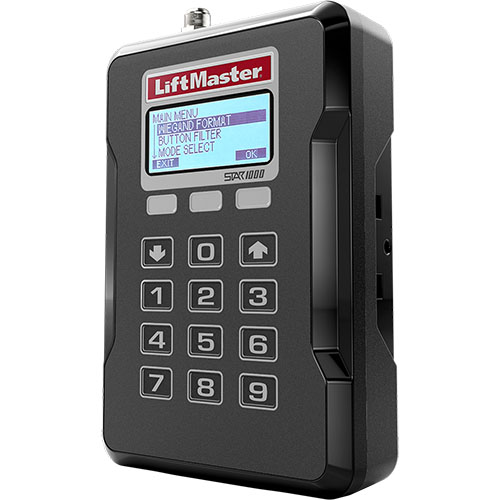

LiftMaster STAR1000 user-friendly and high-capacity receiver system with backup module, for gate and commercial door operators. Holds up to 1,000 remote controls, ideal for large companies!
Functions as a stand-alone controller. Add, block or delete individual users / remote controls with ease via the simple to use on screen menu.
Key Features:
- Universal receiver system for gate and commercial door operators
- Add, block or delete individual users / remote controls with ease via the simple to use on screen menu
- User-friendly stand-alone controller with simple interface
- Compatible with HomeLink®. For programming or compatibility information visit www.homelink.com.
- High capacity, holds up to 1,000 remote controls
- User-friendly with simple interface
- Never lose your data again! Duplicate and restore memory with ease using the removable backup memory module
Additional Features:
- Easy to program using the LCD programming display
- Time saving block learning allows you to program Passport Lite remote controls (10 or 100) a box at a time
- Interference is virtually eliminated and range to your home or facility is improved
- Have total control over user access, temporarily suspend users without deleting their remote control from memory
- Easily re-use a memory slot when you delete a single remote control from memory
- IP44 weather-resistant housing suitable for outdoor installation
- Quickly and easily copy into a second radio receiver for another access point using the removable backup memory module
- Add protection to your device with a 6-digit pin code
- Display and edit the dealer 11-digit contact phone number
- Adjustable relay time from 0.25 to 1 second
- One relay output (N/O and COM)
- Device language can be set to English, Spanish or French
Compatibility:
This Security+ 2.0® receiver is compatible with all LiftMaster® Security+ 2.0 remote controls and operates on Narrowband & Tri-band frequencies such as 310, 315, 390, 433.30, 433.92, 434.54, 868.30, 868.95, 869.85 MHz.
This receiver is compatible (but not limited to) with the following Chamberlain LiftMaster remote controls,
- TX2EV
- TX2EVF
- TX4EV
- TX4EVF
- 041ATX4EVF
- TX2EVS
- TX4EVS
- TX4UNI
- TX4UNIS
- TX4UNIF
Downloadable Materials
| Dimensions | |
| Dimensions | Height: 152mm Width: 105mm Depth: 48mm |
| Electrical Data | |
| Voltage Supply | 9-30 VAC, 9-42 VDC |
| Performance Data | |
| Working Temp. (°C Min/Max) | -40°C to +65°C @ 50% Rh; -40°F to +149°F @ 50% Rh |
| Radio | |
| Frequency (MHz) | This Security+ 2.0® receiver is compatible with all LiftMaster® Security+ 2.0 remote controls and operates on Narrowband & Tri-band frequencies such as 310, 315, 390, 433.30, 433.92, 434.54, 868.30, 868.95, 869.85 MHz. |
| Technical | |
| Max Users | Up to 1,000 remote controls |
| Protection Level (IP) | 44 |
| Relay Outputs | One Form C Relay. N/O and COM |
LiftMaster STAR1000 Universal Receiver
- Brand: LiftMaster
- Product Code: STAR1000
- Availability: In Stock
