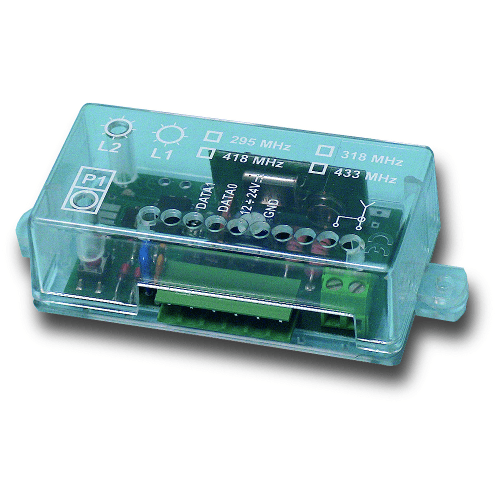

CDVI SELWR433 Wiegand Radio Receiver

Part of a range provided by CDVI and manufactured by Elpro Innotek of the CDVI company group, the SELWR433 is one of many radio control and switching products that provide wire-free conrol of gates, barriers, doors, lights and much more and made to be a high quality and high performance range.

The receiver range is compatible wtih all of CDVI's fixed or rolling-code transmitters. From the entry level 'nano' single channel receiver capable of storing 85 users within its memory, to the multi-user receiver boasting a possible 1600 user entries. This range also includes external and mains rated receivers.

Standard range for these receivers is up to 200m, this can be enhanced by installed the optional product, SEA433 which is a tuned aerial used to amplify range.

For connection and compatibility of user identification to access control systems, we provice receivers which operate on a Wiegand 26-bit technology.



Product Range Features:

  • Useable both internally and externally.
  • Rolling and fixed code options.
  • 1, 2 and 4 channel models.
  • Wire-free applications.
  • Cost-effective switching.



Product Range Specifications:

  • Dimensions: 105 x 45 x 28 (mm)
  • Frequency: 433.92 MHz
  • Encoding: Fixed / Rolling / Keeloq Hopping Code
  • Range: Up to 200m - Can be enhanced with an accessory
  • Voltage:
    • Internal Models: 12/24 Vac/dc
    • External Models: 12/24 Vac, 240 Vac
  • Memory:
    Product Code:No. of Users:
    SEL2641R433NN:85
    RX26-433I:85
    RX39-433:Unlimited
    SELWR433:Unlimited
    RX26-433-CnV:85
    RX26-Zn:85



Note: Please contact us for information on products in the above table that are not included on the store.

Details
ManufacturerCDVI
Radio
Coding TypeFixed
Frequency (MHz)433.92
Technical
Max Range200m

CDVI SELWR433 Wiegand Radio Receiver

  • Brand: CDVI
  • Product Code: SELWR433
  • Availability:  In Stock
Register now for our best prices on thousands of automation, access control and safety products

Tags: CDVI, SELWR433, Wiegand, Radio Receiver
