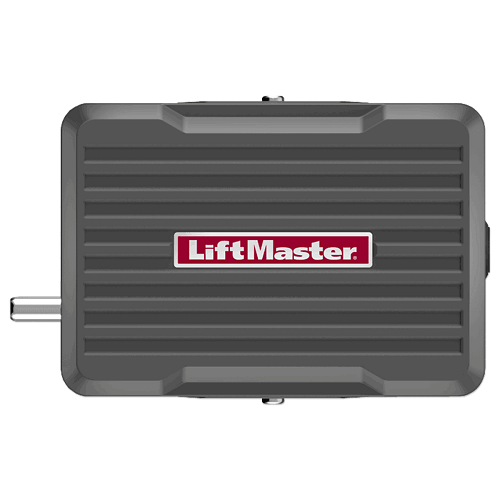

The LiftMaster 860EV is a universal 3 channel radio receiver, part of the LiftMaster Evolution / EVO series. This device is compatible with a wide array of LiftMaster devices that operate on either 433 MHz or 868 MHz EVO code.

This receiver is a direct replacement for the older LiftMaster 8003EV receiver.

Features

• Compact design to fit most garage, gate and commercial openers
• Can operate up to three different drives or applications
• Three relay driven channels, will allow OPEN, CLOSE, STOP functions
• Operates using EVO radio technology on 433 MHz & 868 MHz with increased range
• 3 Channels available:
  • Channel 1: 50 remotes
  • Channel 2: 20 remotes
  • Channel 3: 20 remotes
• 2 channels = normally open 'N.O'
• 1 channel = normally closed 'N.C' & normally open 'N.O'
• Each channel can also take 2 wireless keypads (747EV model)

Compatibility

• Compatible with LiftMaster EVO transmitters:
  • TX4UNI, TX4UNIS, TX4UNIF (433 MHz) and more!
  • TX2EV, TX2EVS, TX4EV, TX4EVS, TX4EVF (868 MHz)
• Compatible with wireless accessories: 747EV & 128EV (433 MHz)
• Compatible with external transformer: 23015UNI
• Please Note: 433 MHz EVO code is NOT compatible with older rolling code devices
• Please Note: This receiver is NOT myQ compatible

Technical Information

• IP Class: IP45 protection rating, suitable for outdoor use
• Switching time: 250ms
• Relay contacts: Max.5 A, 28 V AC/ DC
• Voltage / Power: 9-30V AC or 9 – 34V DC, 50Ma
• Radio Frequency: 868, 433 MHz EVO technology only
