Features
- Wireless Battery powered Photocell.
- Approx 3 years battery life depending on use.
- Includes transmitter and receiver.
- Ability to connect an 8K2 safety edge directly to the transmitter.

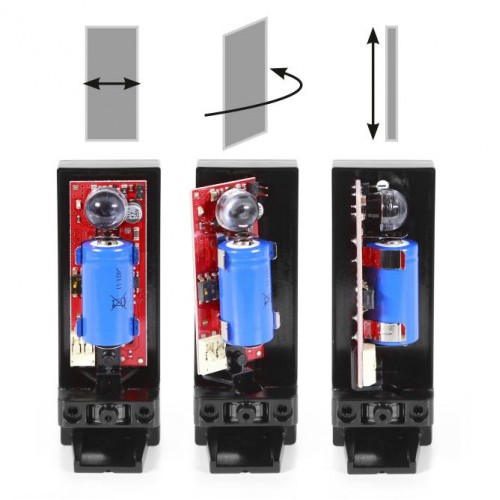

- Can be rotated up to 180°, angle can be adjusted 5°
Specifications
- Battery type: 3v battery CR123A
- Power Supply: 12-36 Vac/dc (RX) and 3V (TX)
- Consumption (mA): Tx110uA, Rx <40mA
- Max Range (m): 10/20
- IP rating: 54
- Dimensions (mm): 38x103x36
- Includes: 1 Tx and 1 Rx
| Electrical Data | |
| Battery Life (Estimated) | Up to 3 years battery life depending on use 12 months with JPOWER closed (MAX) or 36 months if JPOWER is open (MIN). |
| Consumption (mA) | Tx 110 uA, Rx <40 mA |
| Technical | |
| IP Rating | IP54 |
| Range | 10 / 20 m |
