Description

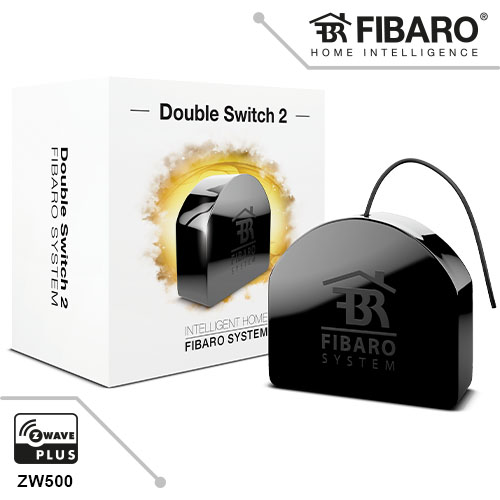

The FIBARO Double Switch 2 is a remote Z-Wave switch designed for standard wall fixings, and grants the ability to toggle the connected devices. Durable and small, they are equipped with active energy and power consumption metering hardware, improve your carbon footprint and lower your bills with this simple addition to your smart property.

Double Switch 2 (FGS-223) can control two electric devices.

Repeater Node

Repeater nodes transmit and receive data with the home centre relevant to their status, and also extend the reach of the mesh.

Features

Compatible with any Z-Wave or Z-Wave+ Controller
Supports protected mode (Z-Wave network security mode) with AES-128 encryption
Advanced microprocessor control
Active power and energy metering functionality
Works with various types of switches – momentary, toggle three-way, etc
To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
FIBARO Single Switch 2 is an extension unit

Technical Specifications

Power supply:	100-240V~ 50/60 Hz
Rated load current:	IEC standards: 6.5A per channel, 10A overall UL standards (resistive loads): 6A per channel, 9.5A overall UL standards (incandescent loads): 3A per channel
Operating temperature:	0-35°C
For installation in boxes:	Ø ≥ 50mm, depth ≥ 60mm
Radio protocol:	Z-Wave (500 series chip)
Radio signal power:	up to 1mW
Radio frequency:	868.4 or 869.8 MHz EU; 908.4, 908.42 or 916.0 MHz US; 921.4 or 919.8 MHz ANZ; 869.0 MHz RU;
Radio transmit power:	up to 6 dBm (EIRP)
Range:	up to 50m outdoors up to 40m indoors (depending on terrain and building structure)
Comply with EU directives:	RED 2014/53/EU RoHS 2011/65/EU
Dimensions (L x W x H):	42.5 x 38.25 x 20.3 mm
