Ultra-slim DIN rail PSU. 12VDC output, 2A rated current output, 24W rated power output.
Features
- Ultra-slim design with 35mm (2SU) width
- Universal input 85-264 VAC (277VAC operational)
- No load power consumption < 0.3W
- Isolation class II
- Pass LPS (limited power source)
- DC output voltage adjustable
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection (working temperature -30°C to +70°C)
- DIN rail TS-35/7.5 or 15 mountable
- Over voltage category III
- LED indicator for power on
- 3 years warranty
Manuals and Data-sheets
| Dimensions | |

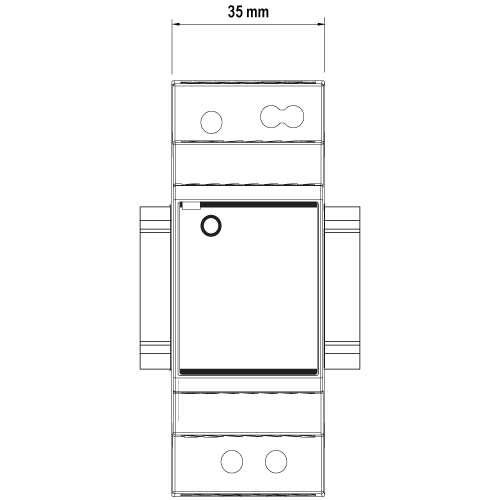

| Dimensions | 35 x 90 x 54.5 mm (W x H x D) |
| Weight (g) | 120g |
| Electrical Data | |
| Frequency Range | 47 to 63 Hz |
| Input Type | 1-Phase / Single Phase |
| Number of Outputs | 1 Output |
| Output Current | 2A (rated) |
| Output Power | 24W (rated) |
| Output Voltage | 12V DC |
| Input Voltage | 85 VAC to 264 VAC, 120 VDC to 370 VDC |
| Performance Data | |
| Working Temp. (°C Min/Max) | -30°C to +70°C |
