ASO ELMON wicom 81-463 Set 2 (2 x TX, 1 x RX)

ASO ELMON wicom 81-463 Set 2 (2 x TX, 1 x RX)


Accessories


Register now for our best prices on thousands of automation, access control and safety products

Bluetooth wireless edge transmission system perfectly compliments the ASO SENTIR edge range of safety devices for doors & gates. Thanks to the user friendly, simple programming procedure ELMON wicom saves you time and money on-site. Utilising tried & tested Bluetooth technology, ELMON wicom enables secure, reliable communications between transmitter & receiver. With dual channel inputs & outputs ELMON wicom provides maximum flexibility for all types of doors & gates.

ELMON wicom

Features

  • Works on 2.4 GHz band low energy
  • Quickest signal transmission and reaction time
  • Flexible output signals in one device
  • Works with "Adaptive Mapping System"
  • User friendly installation due to pre-installed components
  • Robust Housing for outdoor use
  • Comes with transparent lid
  • Easy pairing process
  • Maintenance-friendly thanks to durable lithium battery (2 Years +)
  • Comes always as a 2-Channel version as standard

Kit Contents

  • 2 x Transmitter, 1 x receiver
  • 3 x PG gland M16x1.5
  • 9 x Blind plug
  • 9 x Gasket
  • 12 x Locknut
  • 6 x 8k2 Resistor (pre-installed)
  • 2 x Battery (9,000mAh)
  • 3 x Sealing Insert
  • 1 x Quick start guide

Article Number

1212-0020

Manuals and Datasheets

ASO ELMON wicom 81-463 Transmission System Manual

ASO ELMON wicom 81-463 Transmission System Quick Guide

ASO ELMON wicom Transmission System Datasheet

Installation Examples

Click diagrams to enlarge

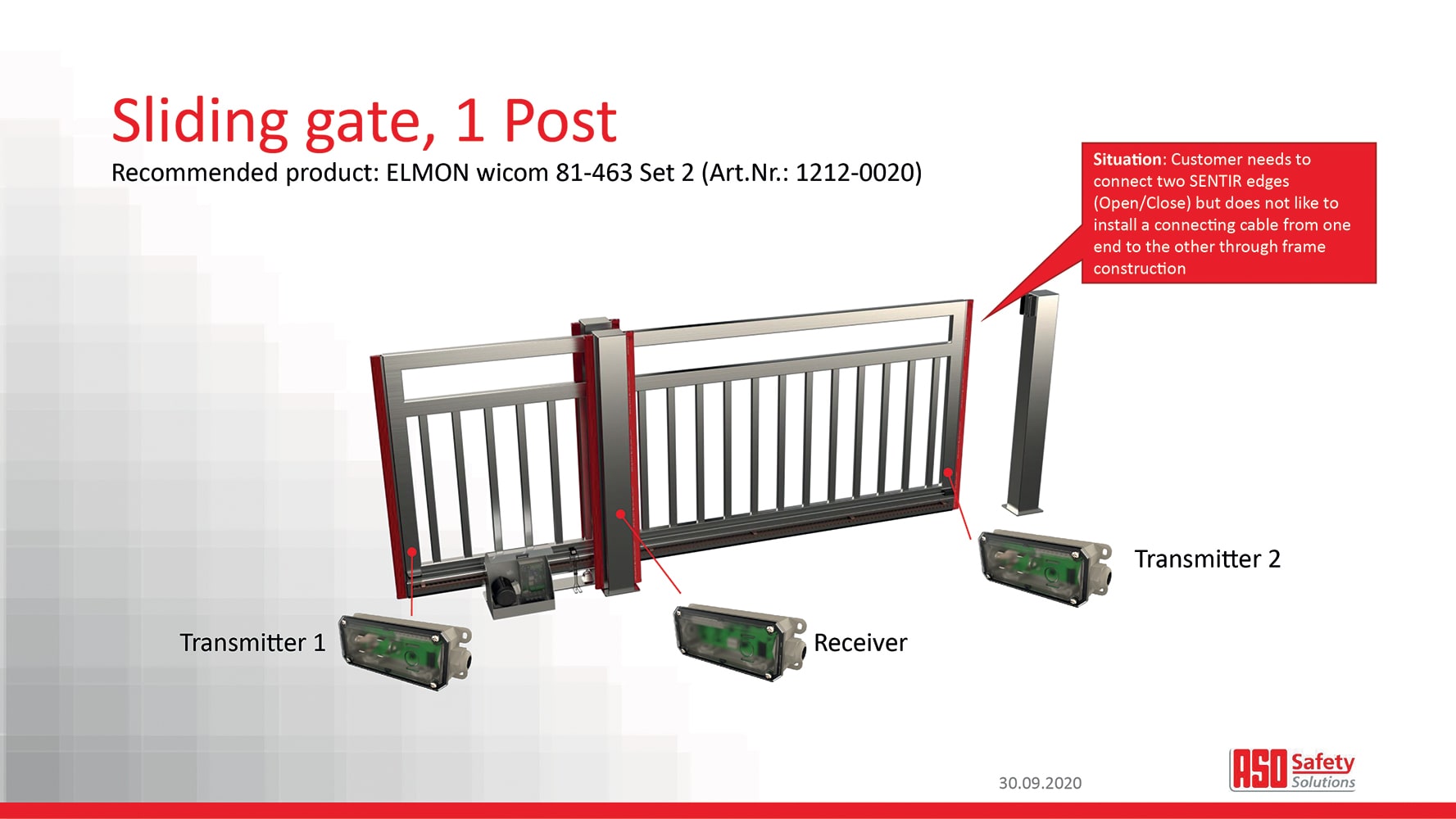

Sliding Gate Example 1

Sliding Gate Example 2

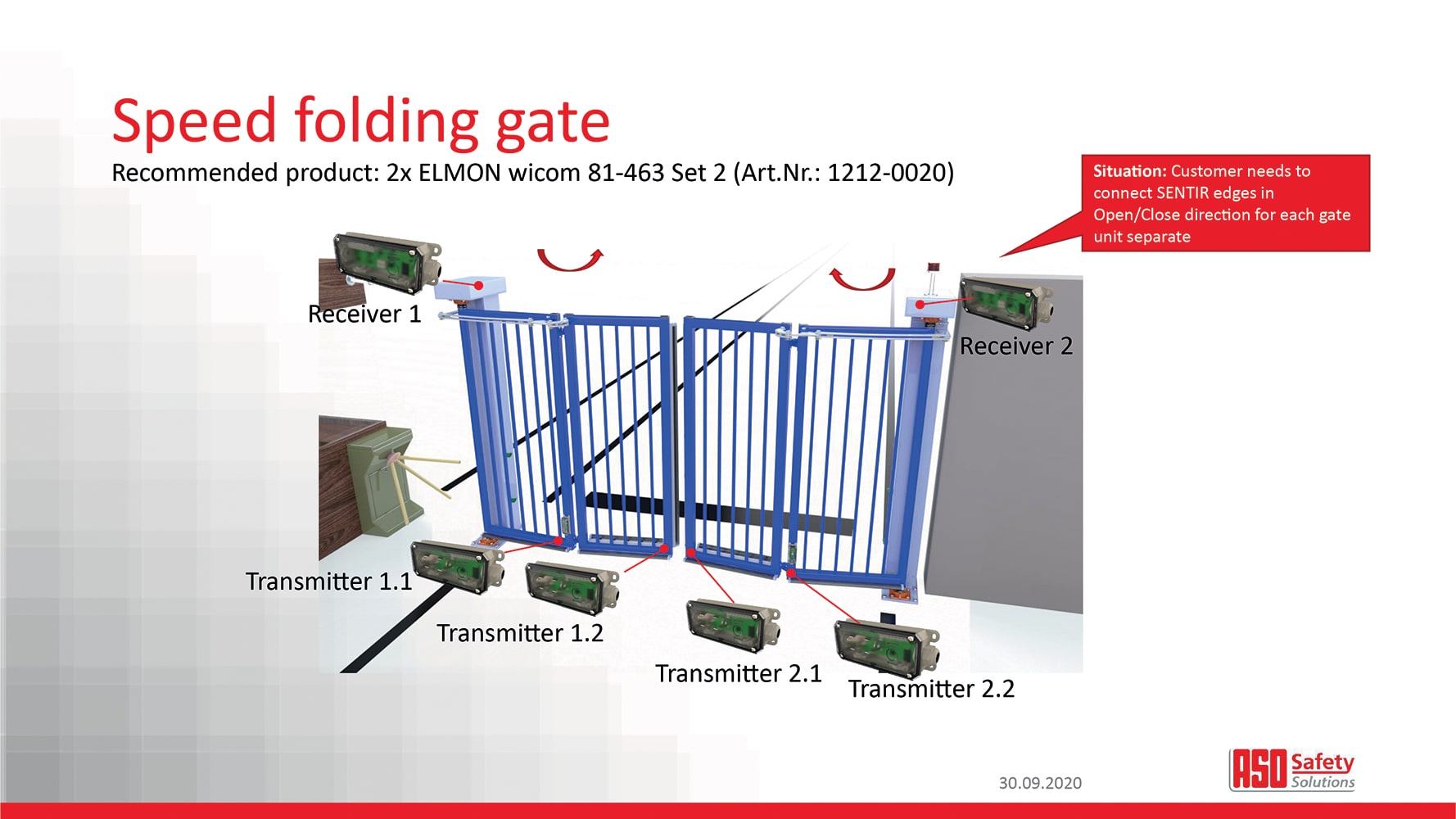

Folding Gate Example 1

Folding Gate Example 2

Electrical Data
Battery Life (Estimated)2 years
Battery Type3.6V C-Typ - 9,000mAh
Radio
Frequency (MHz)2.4 GHz
Safety Relay Data
Safety CategoryCat.2 PL Cat.2 PL „C“ self tested
Technical
Channels2
IP Rating65
