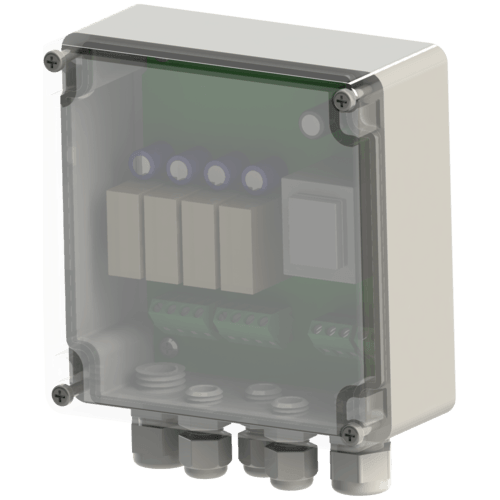

The ELMON relay is a safety relay that monitors tactile sensors, such as the SENTIR range of contact safety edges, contact bumpers and contact mats. All ELMON relay control units comply with EN 13849-1 and the new Machinery Directive 2006/42/EC.

Features

• Dimensions: W 120 mm x H 102 mm x D 55 mm
• Safety Category and Performance Level: *Cat. 3 / PL e
• Voltage supply: 230 V, 24 V AC/DC
• Response time: <12 ms
• Input: 2 x sensors 8,2 kOhm
• Output: 2 x forcibly actuated relay contacts
• Protection class: IP 65
• Mechanical service life: >10⁵ actuations
• Approval: 2006/42/EG

*according to DIN EN ISO 13849-1

Article Number

1109-0030

Product Naming Change

Please note that the ELMON range of safety relays has been renamed to ELMON relay. From now on, all switching devices are listed under the product name ELMON relay. By means of the type code, the housing type can still be identified and also the part numbers of the devices remain unchanged.

This particular model was previously known as the ELMON classic 32-312.
