About The DGLP & DGLI Proximity Reader Range:

The DGLP & DGLI range of proximity readers are offered in a variety of formats to provide a real solution for contact-less access control in the most demanding of applications.

These readers are available in a standard and narrow style with the option of being housed in stainless steel for the more harsher environments.

Compatible with all of the CDVI controllers available, as well as their Wiegand 26-bit output to comply with industry standards (WLC) this range also has audible and visual feedback for the user.

Th stainless steel models (DGLI & DGLIFN) have a patent applied which protects the technology used within them that provides you with a reliable reading through the metal housing. This technology is unique to CDVI and allows the stainless steel readers to be extremely resistant to vandalism and the environment.

All of the models are extremely easy to install, the fixings are concealed on the polycarbonate range and vandal-resistant screws are provided for the stainless range.

Range Features:

• Choice of Polycarbonate Housing or Stainless Steel.
• Epoxy Sealed PCB.
• Audible & Visual Feedback.
• Wiegand 26, 30 or 44bit (Applicable to the WLC Product Variants).
• Patented Technology (Stainless Steel Product Variants).
• Ideal for Internal & Extenal Use.

Model Specific Technical Specifications

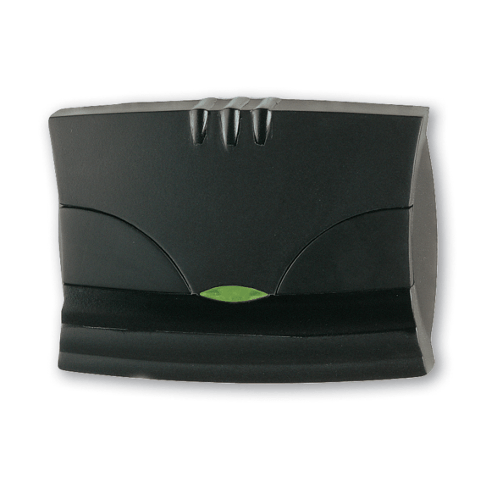

• Standard Reader
• Dimensions: 103 x 81 x 23 (mm)
• Voltage: 12 Vdc
• Current: 100 mA
• Protocol: Mutli-Card Compatible
• Technology: 125 kHz
• Operating Temperature: -30°C / +70°C
• IP Rating: 53
