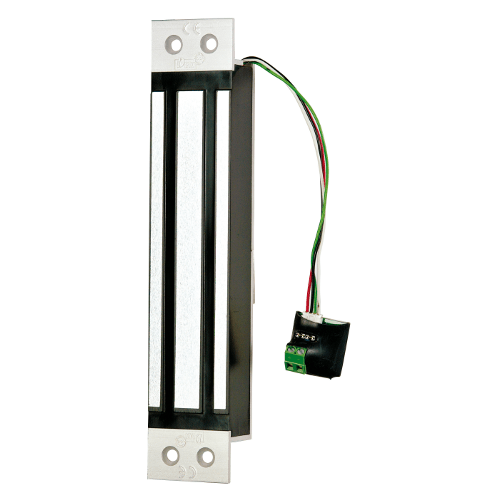

A mortice magnetic lock from CDVI used for securing doors or gates with an easy means of installation and high corrosion resistance, meaning longevity in use even in the harsher environments.

Features:

• Monitored Lock - Know when the lock is lock is active or not.
• No moving parts.
• Fits AT300-H series housing.
• High corrosion resistance.
• No mechanical wear.
• Fail Safe - Door unlocked when power is off/disconnected.
• No residual magnetism.
• Built-in Varistor - Electronic protection to eliminate back EMF.
• Silent Operation.

Technical Specification:

• Dimensions: 228 x 39 x 27 (mm)
• Voltage: 12/24Vdc
• Current:
  • 12Vdc: 500 mA
  • 24Vdc: 250 mA
• Holding Force: 300 kg
• IP: 42
