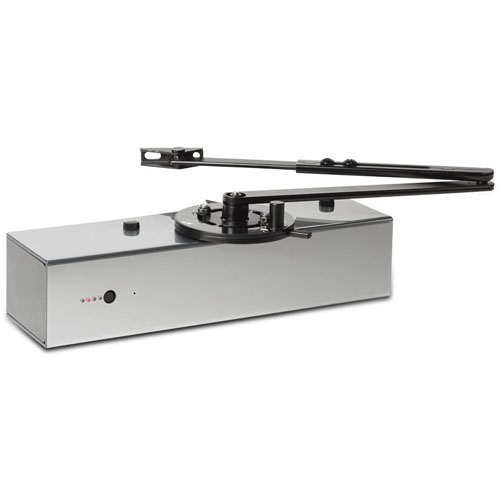

Freedor SmartSound
The Freedor SmartSound designed by Fireco is an innovative wireless overhead door closer device that allows you to effortlessly open and close fire doors in a completely legal, quick and simple way.
Freedor SmartSound allows you to easily place doors open in any desired position. The closer device is free swing, which makes the door incredibly easy to push open with minimal effort. This provides a fantastic solution to the typical resistance of most other door closer devices.
Even better still, when a fire alarm rings, the Freedor device recognises the sound then automatically releases the door, thus allowing it to close and rapidly prevent the spread of the fire.
Features

Enjoy peace of mind with 3-year warranty and up to 3-year battery life

Intelligent sound recognition with innovative SmartSound noise filtering technology

Free swing device means no more struggling with heavy fire doors

Passes all rules and regulations

Helps prevent infection by limiting contact with door handles etc

Allows for greater freedom of movement and while minimising effort

Increased indoor ventilation provides better airflow and air quality

Quickly and easily installed in under 5 minutes!

No expensive hard-wiring is needed thanks to wireless technology

Compatible with any kind of door

No programming or complicated set-up required, simply fit the device and you're good to go!

How Does It Work?
- Installed at the top of any door, the device is powered by batteries - no wiring required!
- Door can then be held open at any angle providing ease of access
- SmartSound technology constantly listens out for the sound of the fire alarm
- When an alarm rings, the Freedor unit automatically closes the door
What's Included?
- 1 x Freedor unit
- 1 x User Guide
- 1 x Fitting Template
- 1 x Closer Arm Pack
- 1 x Parallel Arm Bracket
- 1 x Battery Pack
- 1 x Freedor Adhesive Logo
- 1 x Radial Arm
- 1 x Closer Bolt & Radial Arm Bolt Bag contains:
- 1 x Closer Bolt Assembly
- 1 x Radial Arm Bolt Assembly
- 3 x Freedor Body & Arm Fixtures contains:
- 8 x No. 10 PH Screw
- 4 x No. 10 CSK Screw,
- 2 x M5 Short PH Screw
- 1 x Black Plastic Screwdriver
Manuals & Datasheet
Details | |
Activation | SmartSound listening technology |
Audible Warning | Yes |
Casing | Acrylic |
Classification | Suitable for a Standard (category B) system under BS7273-4: 2015 |
Colour | Silver |
Compliant To | EN1154, EN1155, EN1634, CE Marked |
Fire Rating | Freedor has been tested to EN1634-1 on FD30 doorsets, exposed and unexposed faces |
Hold Open | Place open at any angle using free-swing feature |
Installation Position | Top of the door |
Power Size | Power size EN3 (Max. door weight 60 kg & width 950 mm) |
Warranty | 3 years |
Dimensions | |
Dimensions | Length: 320mm Height: 70mm (105mm with arm) Depth: 95mm |
Weight (kg) | 4.5KG (boxed) |
Electrical Data | |
Battery Life (Estimated) | 3 years |
Power | 9V Alkaline battery pack |
